343nm laser
The 343 nm laser of CRYLINK is a 343nm Microchip laser. These series of lasers are mainly used in material micromachining, spectral detection, lidar, pump source, and biomedical science.

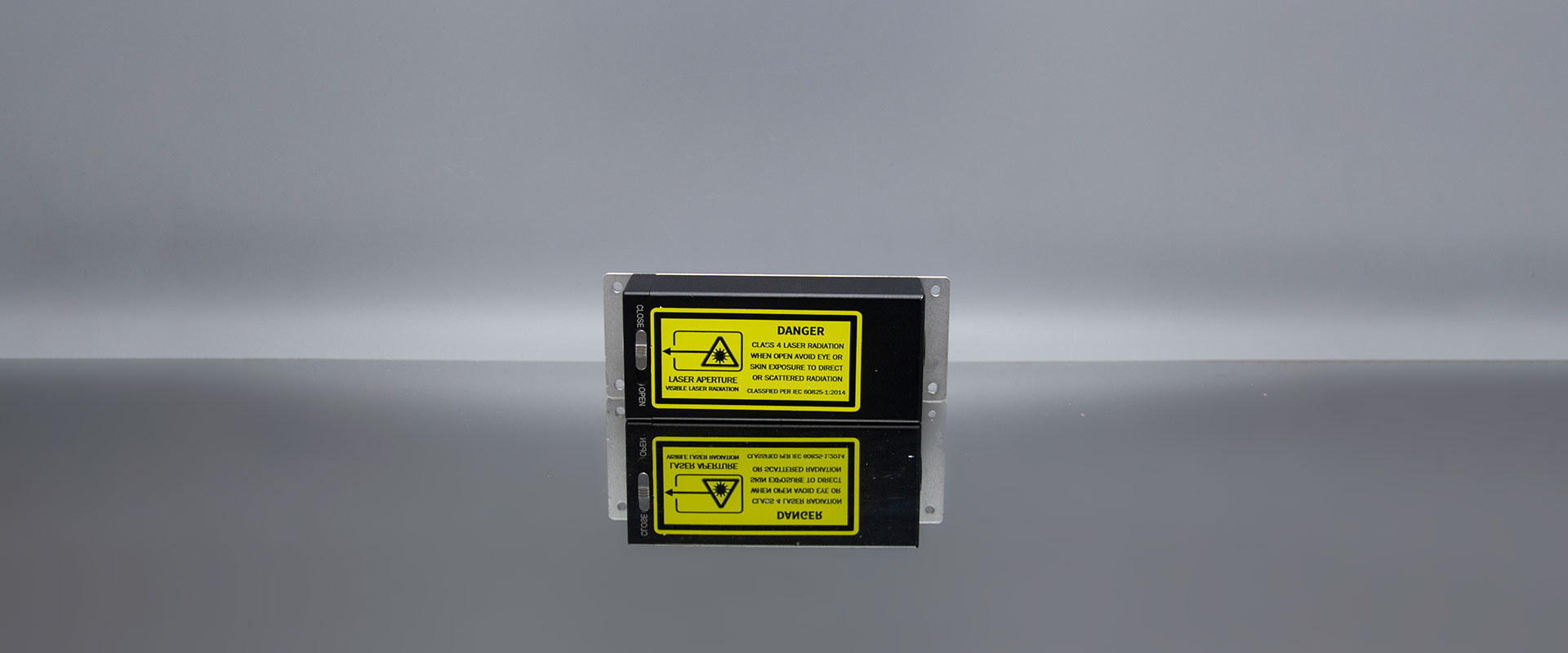

343nm Microchip Laser System of MJ Series
MJ series microchip laser is a passively Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure without tail, the single pulse energy is stable and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include two wavelengths of 1030nm and 515nm. The fully sealed module inside the laser head can be used by customers for secondary development and application.
| Model | CL343-1kHz-20μJ-MJ002 | |
| Optical parameter | Wavelength (nm) | 343 |
| Repetition frequency (kHz) | 1* | |
| Average power(mW) | 20 | |
| Output energy (μJ) | 20 | |
| Pulse width (ps) | 800 | |
| Power stability (8h) | ±3% | |
| Beam mode | TEM00 | |
| Full-angle divergence angle Typ. (Mrad) level @1/e2 | 3 | |
| Vertical @1/e2 | 3 | |
| Polarization characteristics | ＞100:1 | |
| System parameters | System power consumption (W) | ≤15 |
| Power input | 100-240 VAC,50/60Hz | |
| Control interface | RS232、USB | |
| Power supply size (W×H×L, mm) | 168×88×140 | |
| Laser head size (W×H×L, mm) | 45×30×120 | |
| Working temperature (℃) | 15-35 | |
| Storage temperature (℃) | 0-60 | |
| 1.The light outlet of the laser head is side outlet. See the mechanical dimension drawing for details | ||
| 2.Customized internal beam expansion function to meet the requirements of small divergence angle (less than 2mrad) | ||
- Pulse width up to 800ps
- Pulse energy up to 100 μJ
- Maximum repetition rate up to 2KHz
- Beam mode is TEM00
- Material micromachining
- Spectral detection
- Lidar
- Pump source
- biomedical science
